Positioning of Reeds

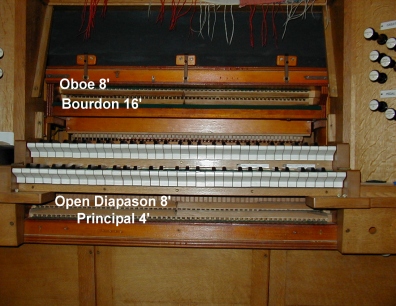

Front ranksRushworth Organ Action

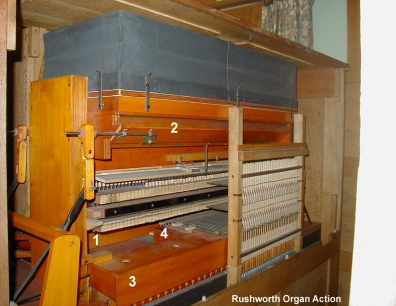

In the second photograph, the numbers 1-4 are used to represent the following:
1 = Remainder of great reeds, Clarabella, Dulciana (derived), and Clarabella ranks, inside resonator box.
2 = Remainder of Swell reeds, Gamba and Flute ranks, inside swell box.
3 = Box covering Pedal Open rank.
4 = Box covering Sub bass reeds.
