Exterior Plates
Below are a series of exterior plates of the Organ.

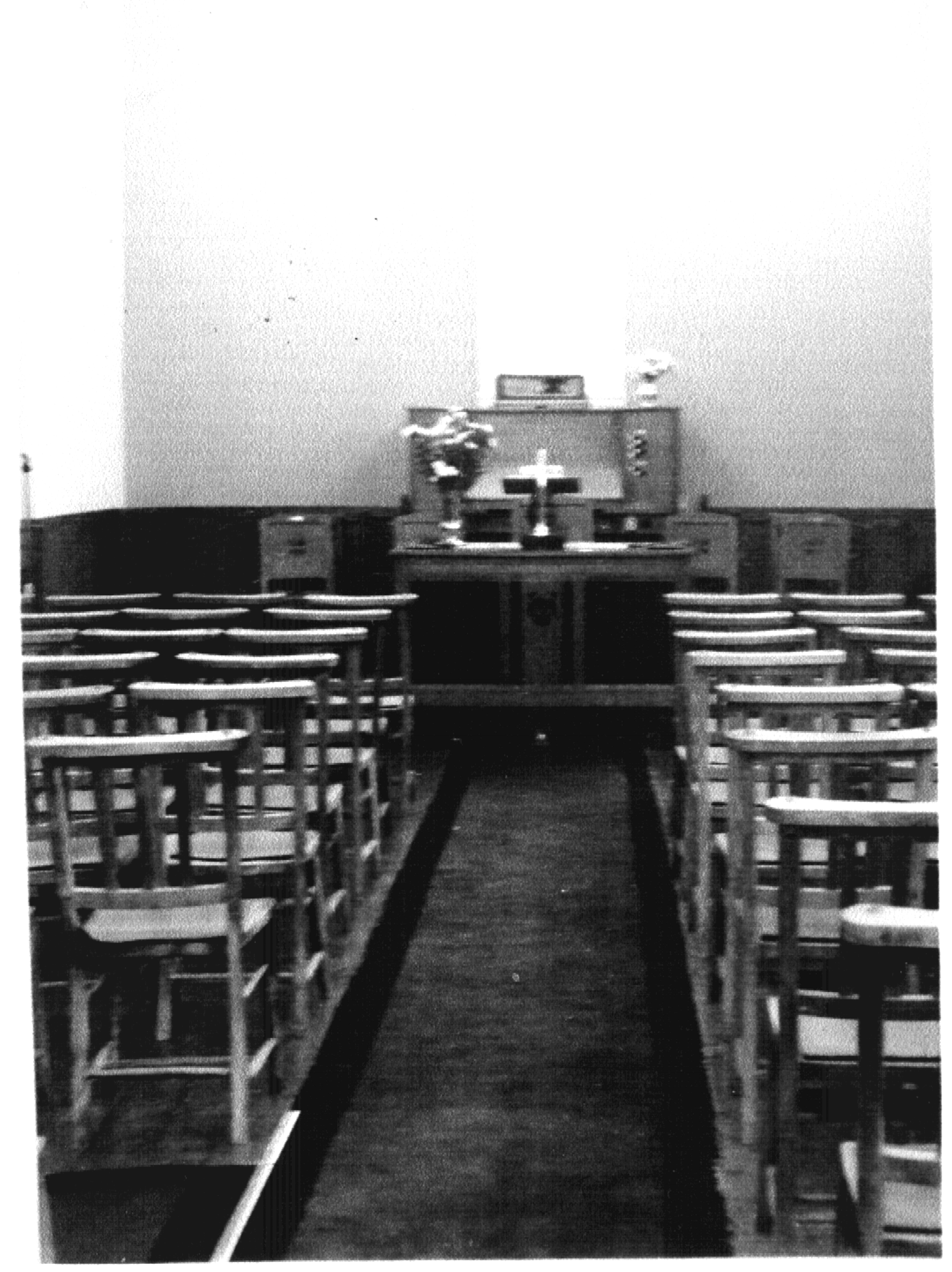

The Organ whilst installed at Christ Church, Bolton-Le-Sands, Lancashire.This photgraph was
kindly supplied by Mr. Francis Towers.

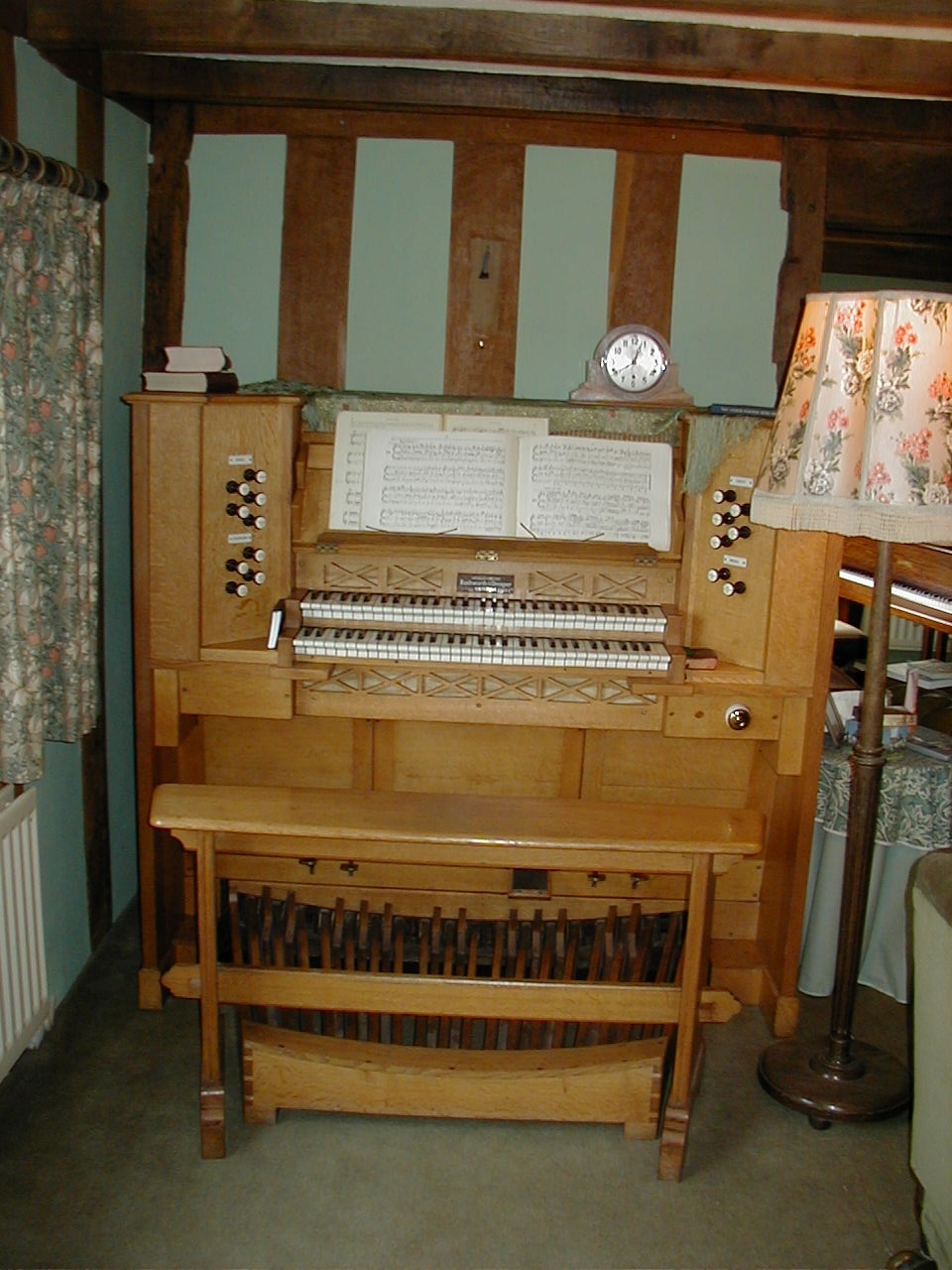

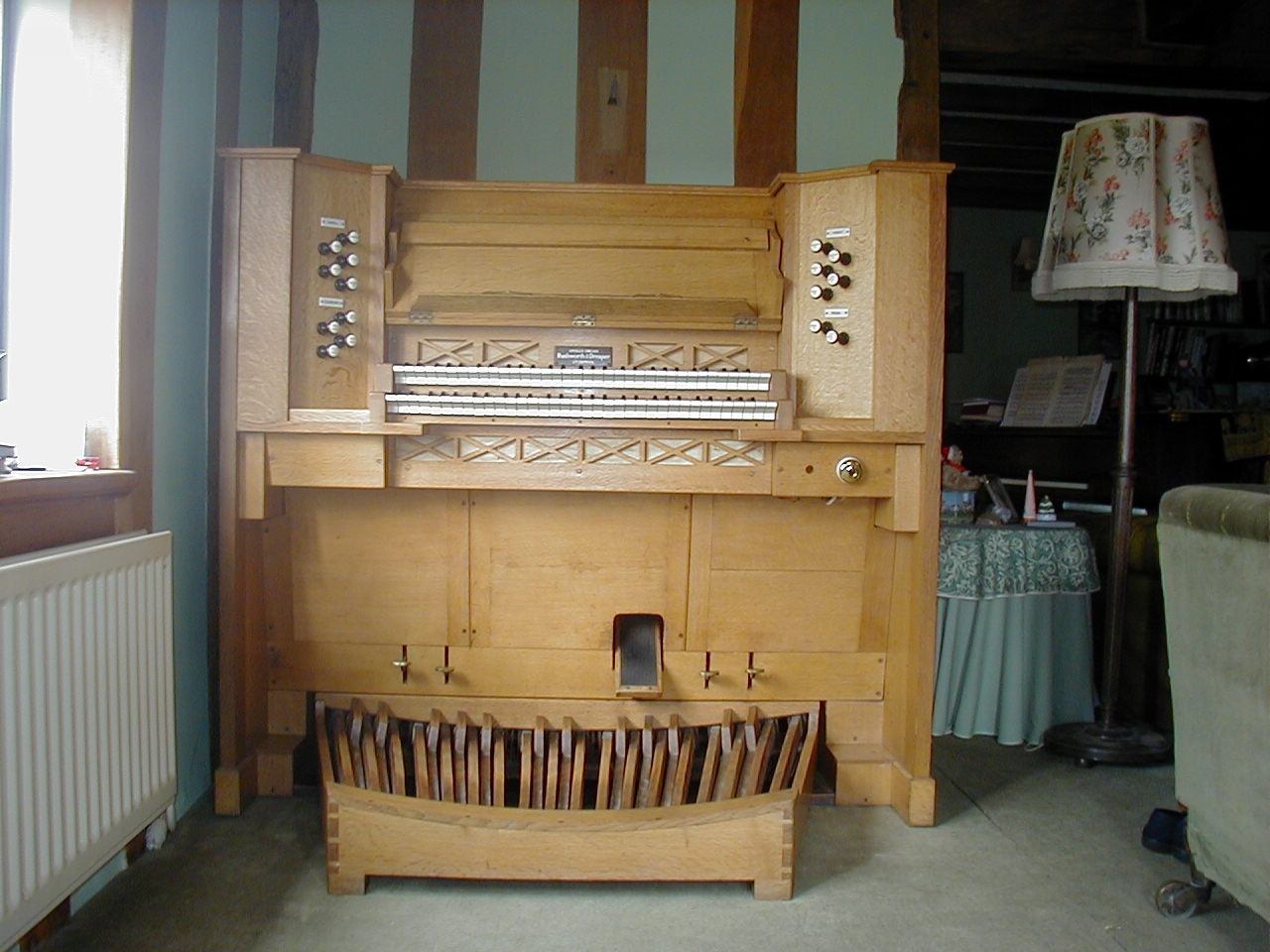

The Organ after installation.
A view of the console, one of many!

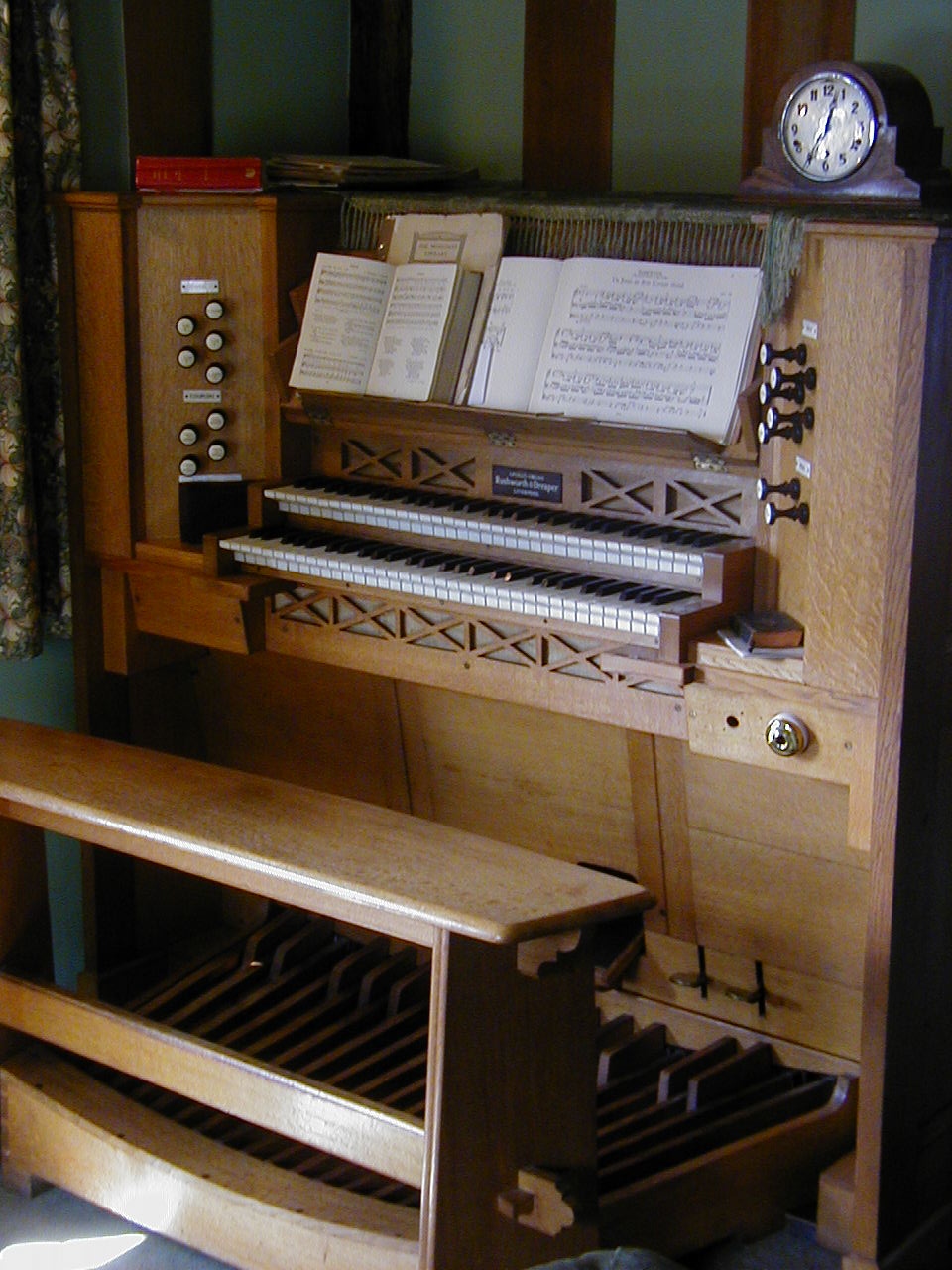

Another view of the console, the bench is the original supplied by Rushworth & Dreaper, it was described as
a "church style" bench with curved front.

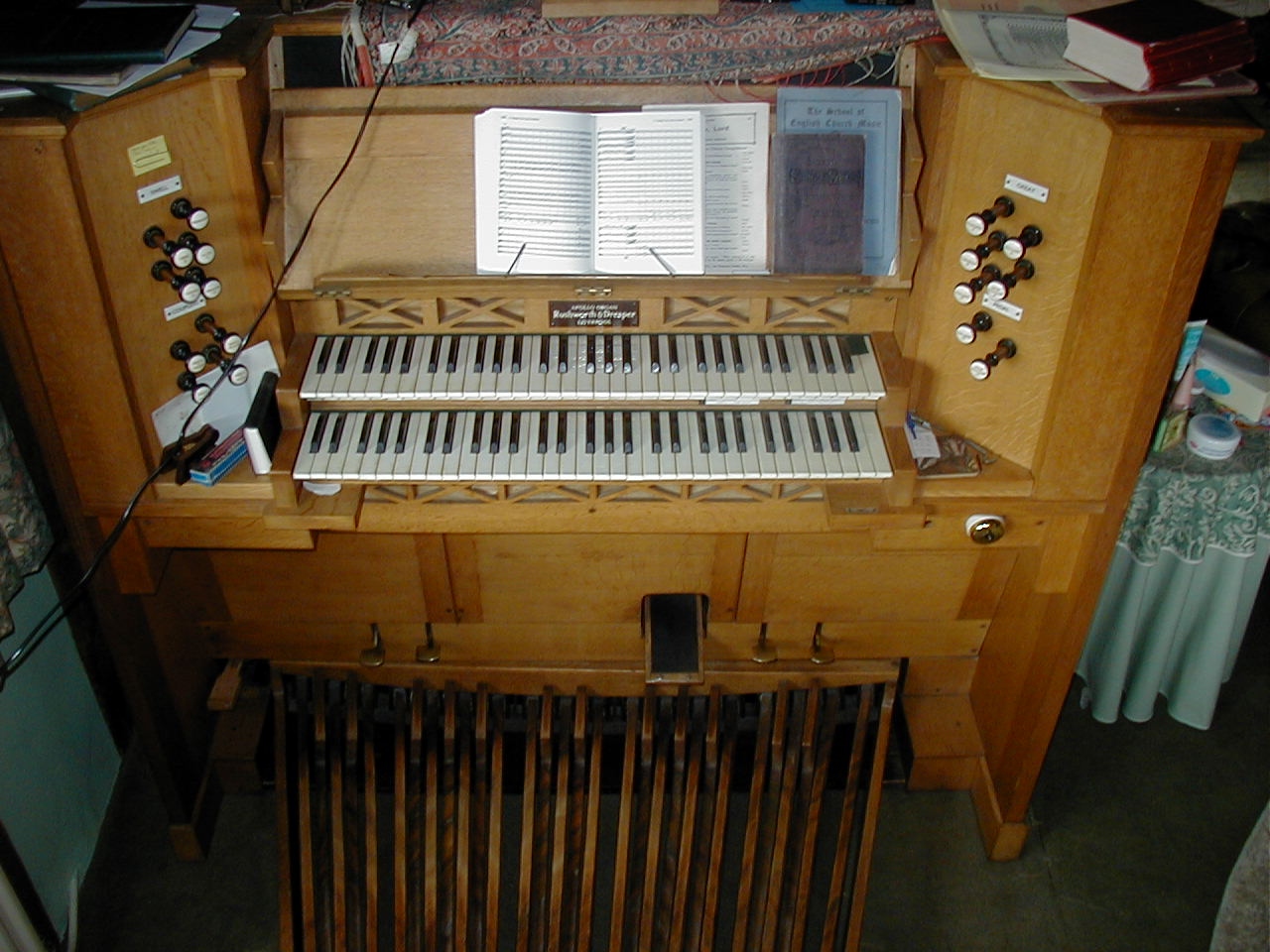

The console from above. This shows the radiation of the pedals.

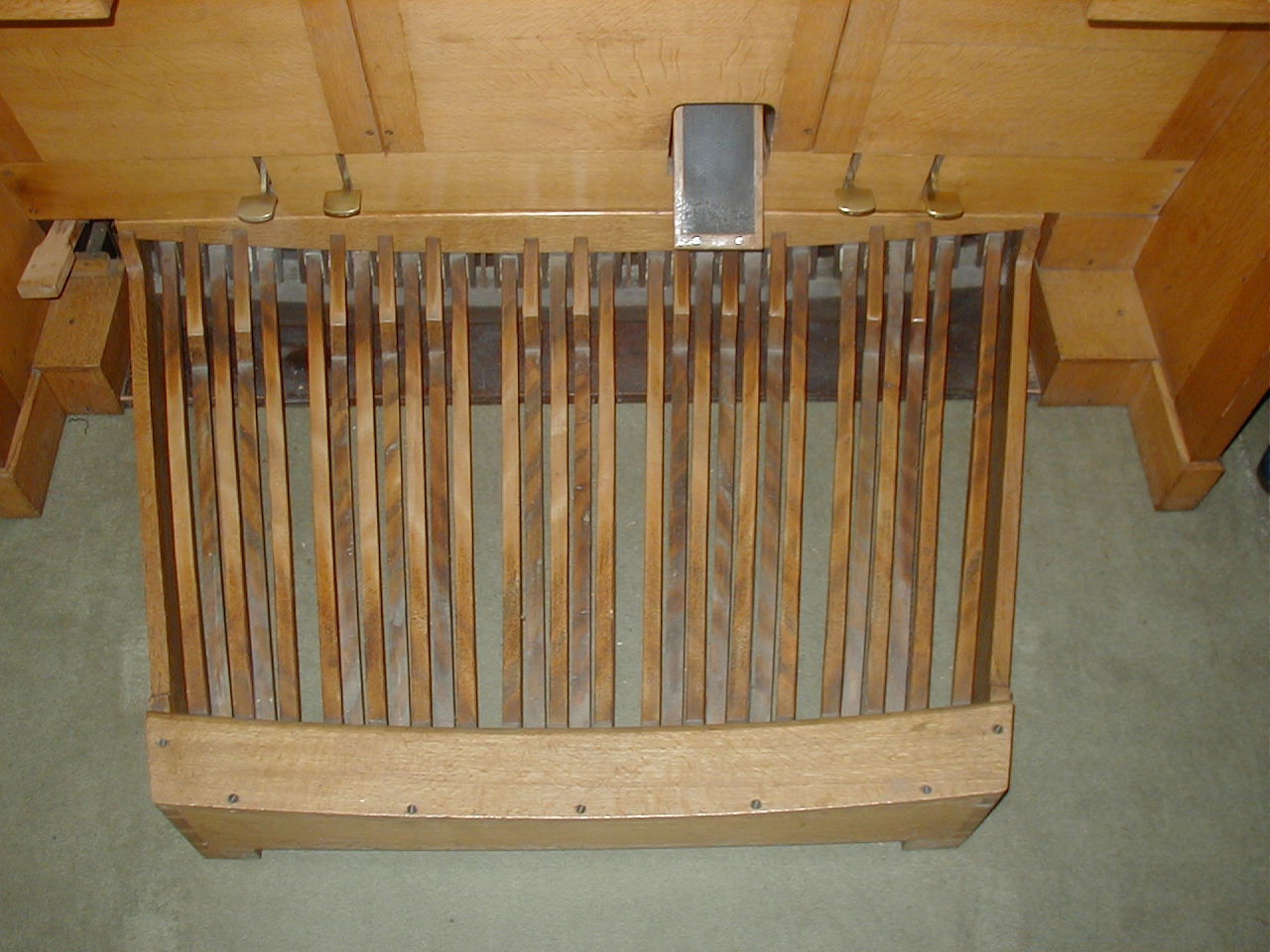

A close-up of the Pedalboard. Note the added "Swell-to-Great" reversible pedal on the
extreme left. The pedal has been installed so far over so as not to alter any of the existing casework,
it can be removed in the future without leaving holes in the casework.

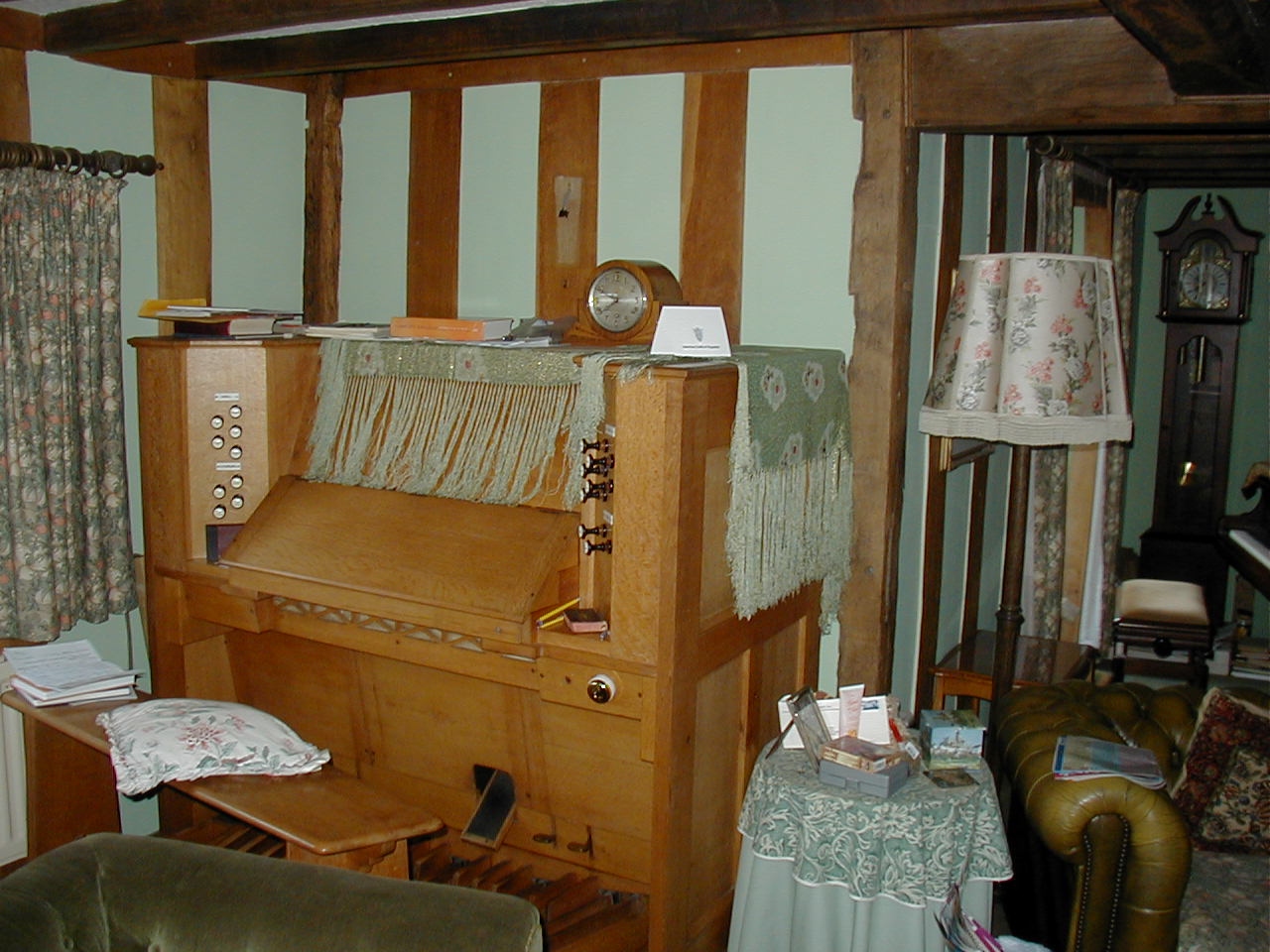

The console with the lid closed.

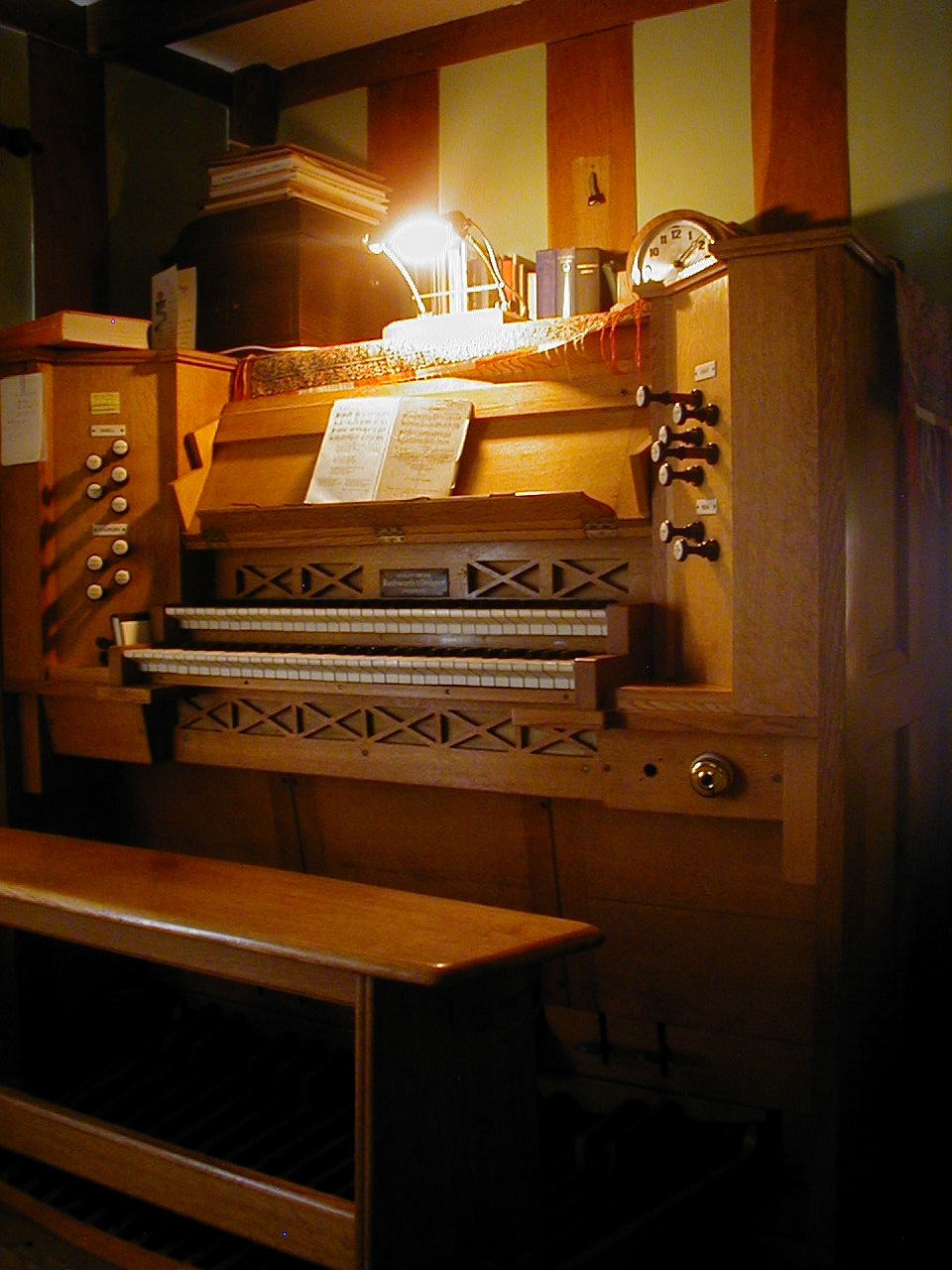

The lit console.

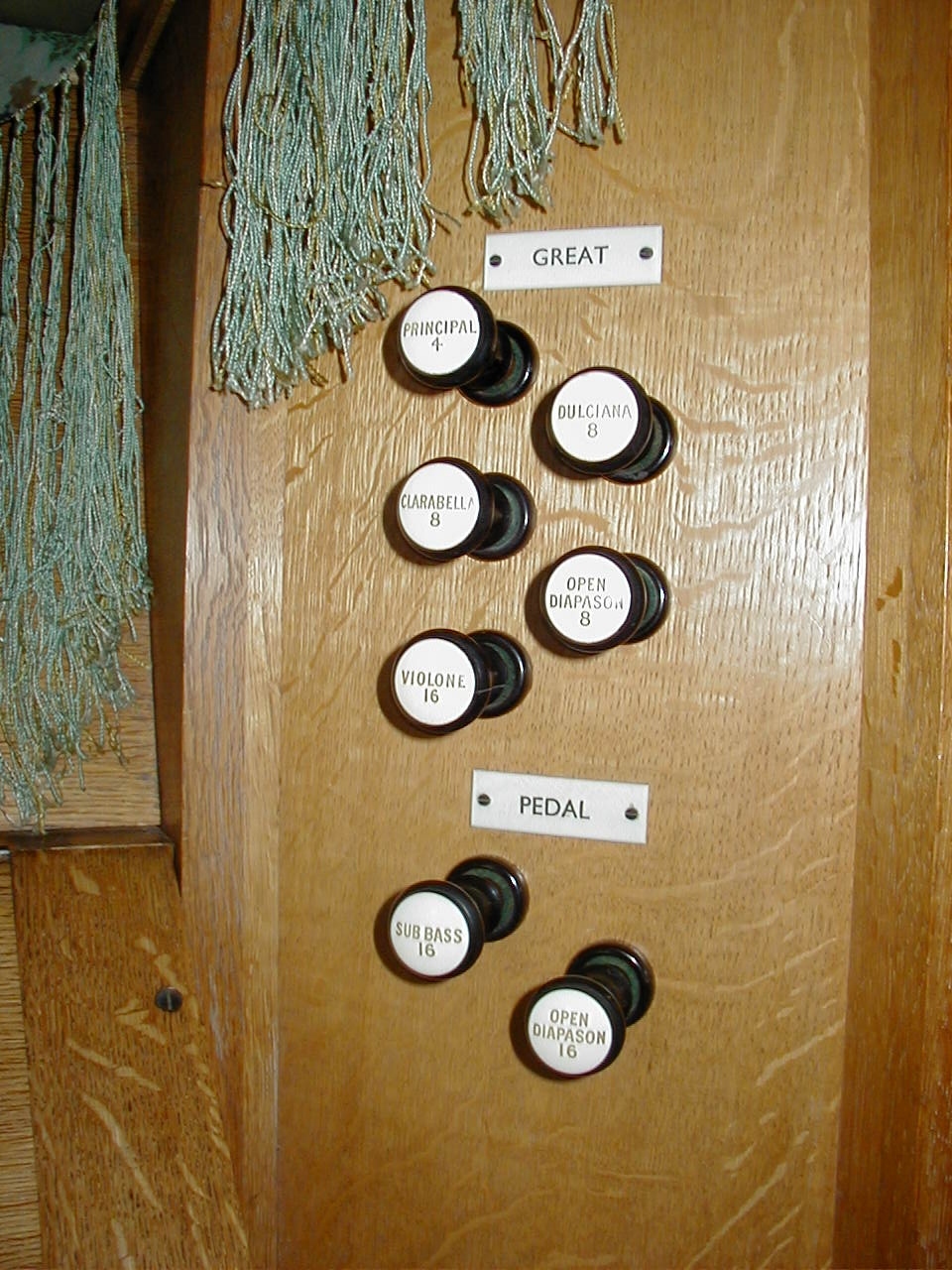

The right stop jamb. From top to bottom; Principal 4; Dulciana 8; Clarabella 8; Open Diapason 8;
Violone 16; Sub bass 16; Open Diapason 16.

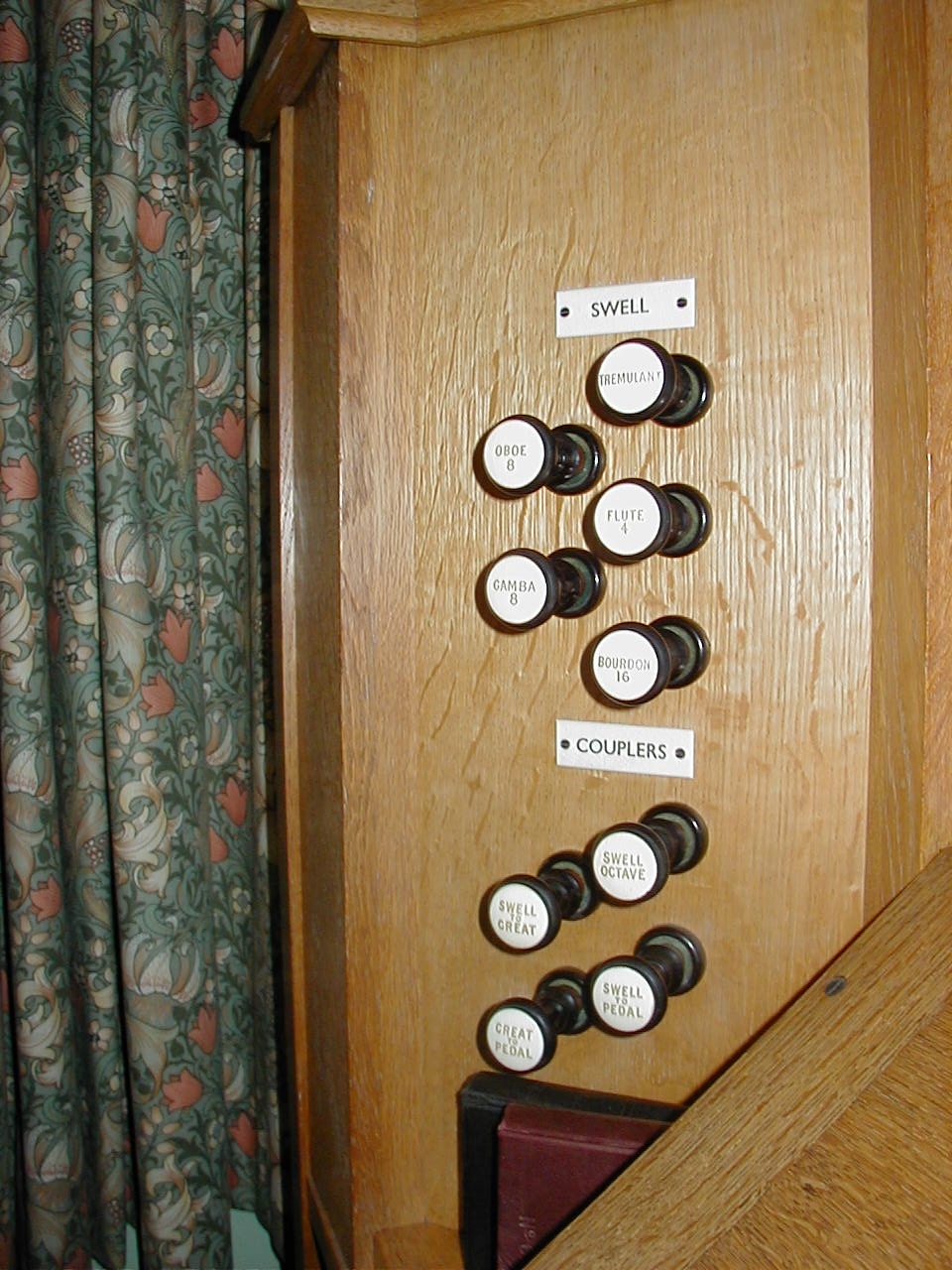

The left stop jamb. From top to bottom; Tremulant; Oboe 8; Flute 4; Gamba 8; Bourdon 16; Swell Octave; Swell to Great;
Swell to Pedal; Great to Pedal.

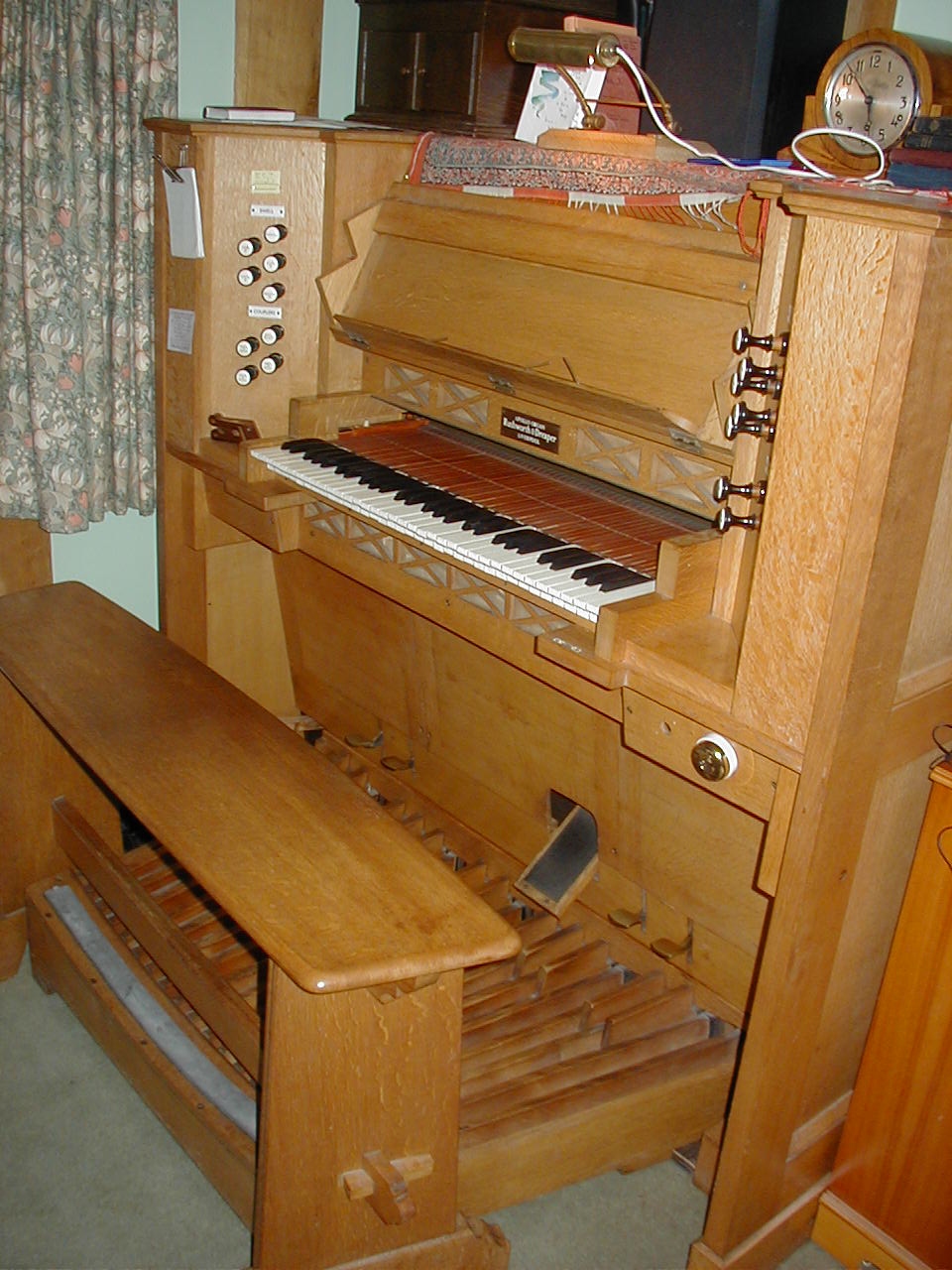

The Swell manual removed for servicing of the Swell to Great coupler.
